Precision Printing Solution for Aluminum Foil Packaging Applications

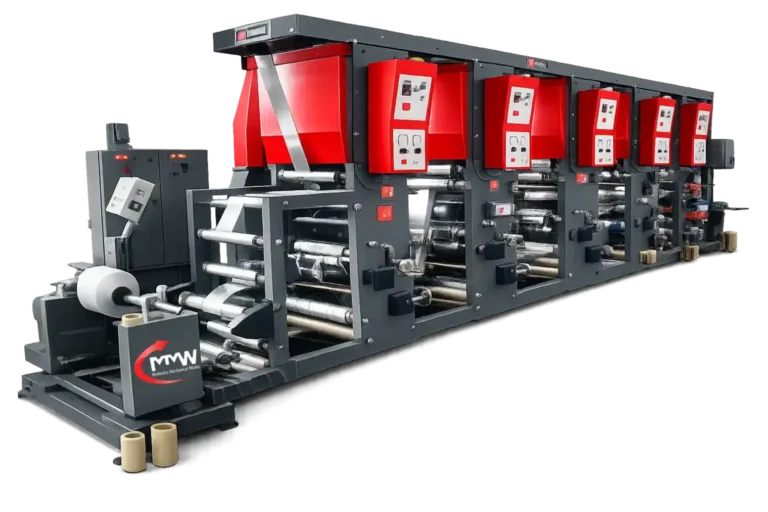

Designed for printed pharmaceutical rolls used on downstream packaging lines, Aluminum Foil Printing Machine combines stable unwinding, balanced impression pressure and clean rewinding. Manufacturers in India can specify the machine around aluminium foil, blister foil, medicine foil and compatible packaging substrates instead of adapting production to a fixed standard model.
Options for automation, inspection, unwind, rewind and colour stations can be selected without adding features that do not serve the production plan. This keeps the machine practical to run while leaving room for future capacity requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Web Width Options | 500mm / 600mm / 800mm / 1000mm |
| Colour Unit | 1-8 Colours |
| Unwind Shaft | Mechanical / Air Shaft (Optional) |
| Unwind Brake Options | Manual / Powder Brake (Optional) / AC Frequency Drive (Optional) |
| Rubber Rollers | Manual / Pneumatic (Optional) |
| Heating Options | Electrical / Hot Air (Optional) / Thermic Fluid (Optional) |
| Web Control | Edge Guide (Optional) |
| Drive System | AC Frequency Drive / Servo Drive (Optional) |
| Rewinder Options | Manual / Powder Clutch (Optional) / AC Frequency Drive (Optional) |
| Rewinder Shaft | Mechanical / Air Shaft (Optional) |
| Suitable Materials | Aluminum Foil / Laminated Foil / Packaging Foil |
Why Choose Our Aluminum Foil Printing Machine?
Precision Pharmaceutical Printing
Controlled impression and accurate registration keep medicine names, batch details, expiry dates, barcodes and packaging graphics sharp and readable throughout production.
High-Speed Stable Production
Balanced web movement, controlled tension and consistent drying support longer runs without unnecessary variation in print position, colour or ink transfer.
Multiple Packaging Materials
The Aluminum Foil Printing Machine can be configured for aluminium foil, blister foil, strip foil, medicine foil and compatible pharmaceutical laminates according to substrate thickness, coating and ink requirements.
Advanced PLC Control
An operator-focused PLC control arrangement simplifies speed, tension and process adjustments, reducing setup effort and helping teams repeat proven settings during routine job changes.
Heavy-Duty Construction
A rigid industrial frame, quality drive components and serviceable assemblies provide smooth operation, practical maintenance access and a long working life.
Customized Machine Solutions
Printing width, colour stations, drive system, drying arrangement, unwind, rewind and automation can be matched to production requirements in India.
Frequently Asked Questions
What is an Aluminum Foil Printing Machine used for?
An Aluminum Foil Printing Machine is used for printing batch numbers, expiry dates, manufacturing information, logos, barcodes, and branding details on aluminum foil packaging materials.
Which industries use Aluminum Foil Printing Machines?
These machines are widely used in pharmaceutical, food packaging, healthcare, FMCG, nutraceutical, and flexible packaging industries.
Can the machine print on laminated foil materials?
Yes. The machine can print on aluminum foils, laminated foils, and various packaging foil structures.
Does Pharmaceutical Foil Printing Machines provide installation and technical support?
Yes. We provide installation assistance, operator training, maintenance support, technical guidance, and spare parts support.
Can the machine be customized according to production requirements?
Absolutely. Machine specifications can be customized based on printing width, color configuration, production capacity, and application requirements.
What details are needed before final machine selection?
Please share the material type, required web width, roll size, print colours, approximate production speed, sample artwork, batch coding requirement and available floor space. These details help us suggest a practical machine instead of a generic model.
Can the machine be supplied for different pharmaceutical packaging materials?
Yes. The machine can be configured for common pharma packaging substrates such as blister foil, aluminium foil, strip foil, laminated foil, Alu Alu cold-form foil, PVC, PVDC and PET film. Final suitability depends on substrate thickness, coating, ink system and drying requirement.
How does the machine help reduce rejection and wastage?
Stable tension control, accurate roller setting, proper drying and consistent registration help reduce misprints, smudging, foil damage and setup wastage. Operator training and correct preventive maintenance further improve daily production reliability.
Do you support customers after installation?
Yes. Mohindra Mechanical Works provides installation guidance, trial run support, operator training, maintenance advice and spare parts assistance.
